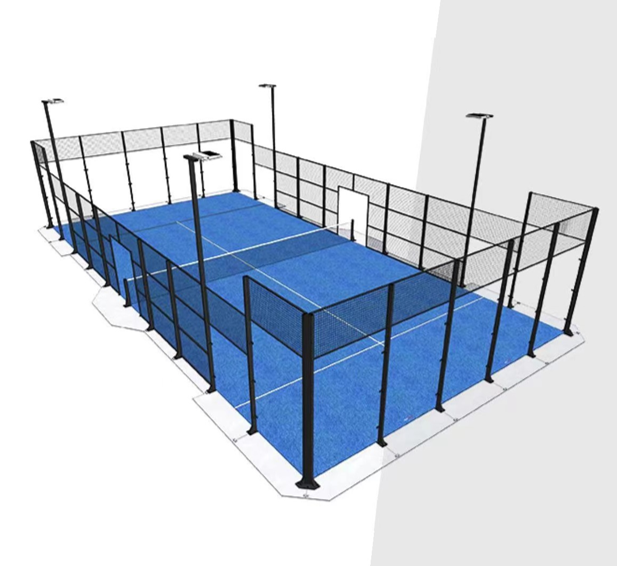

Portable Type Easy Assembly Disassembly Mobile Padel Tennis Court
What is A Portable Padel Court?
Traditional padel courts typically rely on fixed concrete foundations. This approach not only results in rigid, unalterable infrastructure but also entails significant drawbacks, such as exorbitant relocation costs and low space utilization rates.
In contrast, Portable Padel Court utilize an innovative, modular, and flexible floating base system that eliminates the need for permanent concrete foundations. This lightweight, mobile design drastically lowers the barrier to initial construction while offering unprecedented flexibility for facility operations.
Advantage of Portable Padel Court?
1. Adaptive Foundation and Multi-Terrain Compatibility
The product utilizes a modular base structure. This design allows for direct assembly on slightly uneven ground—without the need for precise leveling or rigid surfacing—thereby eliminating the reliance on specialized foundations typical of traditional court construction.
2. Rapid On-Site Assembly of Prefabricated Base Panels
The base panels are standardized and prefabricated in the factory; once transported to the site, they are assembled via interlocking connections. This process shortens the construction timeline and accelerates the facility's readiness for use.
3. Lightweight Structure and Low-Load Design
The base system is lightweight, resulting in minimal load per unit area on the ground surface.
4. Modular Scalability and Multi-Scenario Application
The modular base design allows the total surface area to be adjusted by simply adding or removing modules.
Premium Materials
Professional Padel Turf
Material: 100% PE monofilament, KDK curly
Pile height: 12mm±
Dtex: 10,000
Density: 50,400 stitches/sqm
Backing: double PP layers + PU
Color: customizable. Integrated white lines.
IBV Tested.
Metal Structure
Material: Hot-dip galvanize 3mm steel (Q235B).
Painting: electrostatic oven-cured powder coating.
Polyester based powder coating, design for exterior exposure.
Color: customizable
Metal Mesh
Hot-dip galvanized metal mesh
electro-welded wire mesh 4mm, 50x50mm
Structure secured to the ground with expansion or chemical bolts
Tempered Glass
Thickness: 12mm
Mechanized hole drilling
CE/SGCC certificate
Quantity: 2x3m, 18 pcs

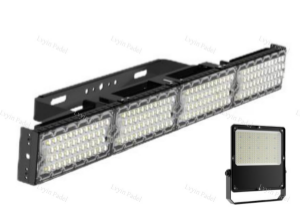

LED Flood Lights
Power: 8x200W / 4x480W
illumination: 200~800lux
IP66 Water-proof
CE/ROHS certificate

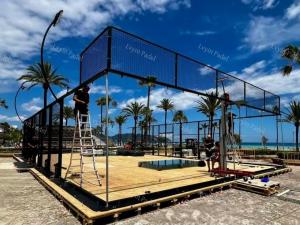

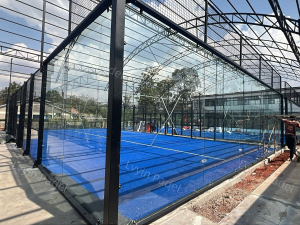

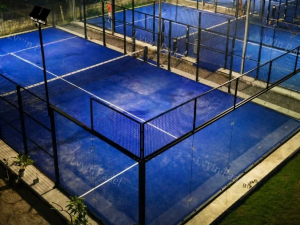

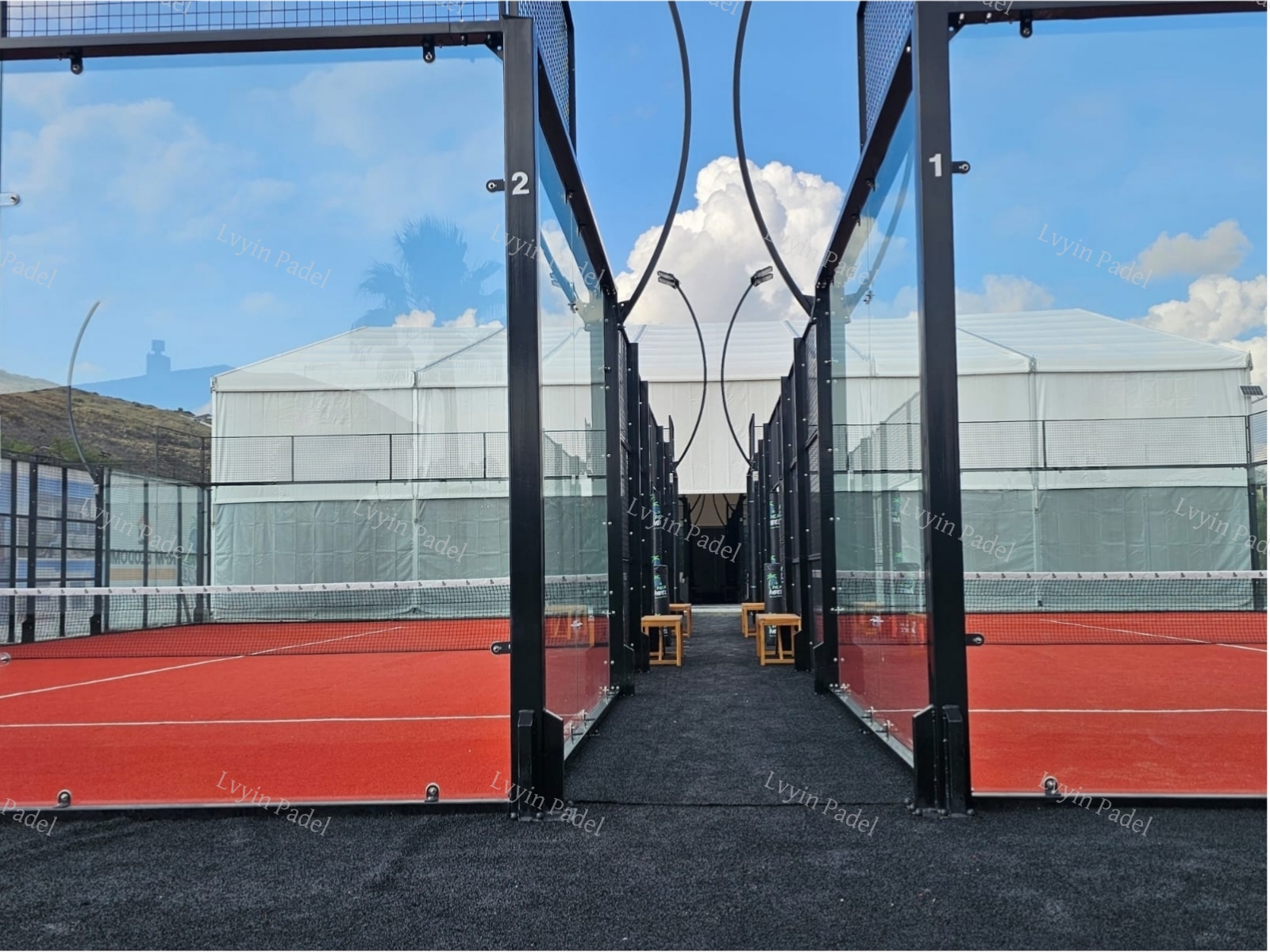

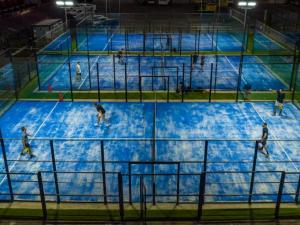

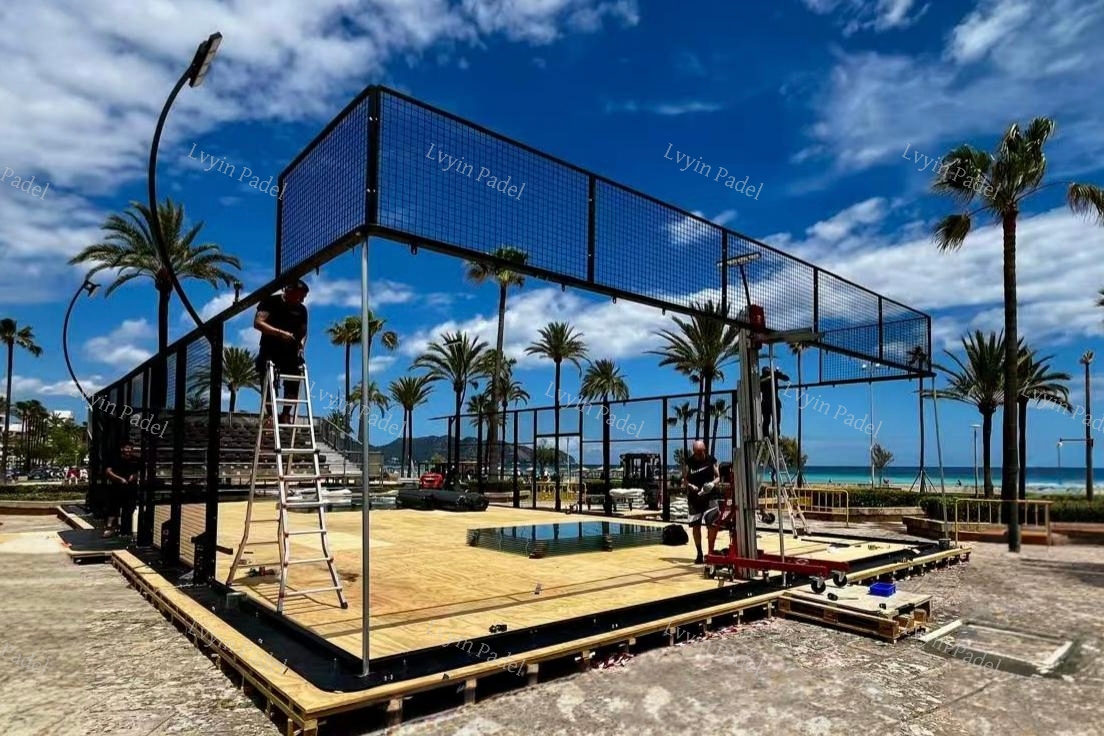

Project Cases
RFQ of Portable Padel Court?
Q: Will the flexible bottom plate come loose or affect the playing experience?
A: They feature a high-strength interlocking mechanism that ensures a tight, secure fit with no wobbling. The surface remains flat and uniform, providing consistent ball rebound that fully meets professional athletic standards. The bottom plates remain stable and retain their shape even with long-term use.
Q: Does disassembly and reassembly affect the ability to reuse the bottom plate of portable padel court?
A: The bottom plate of portable padel court suffer no wear and tear and require no consumables. They can be 100% reused at a different location after disassembly, with no loss of residual value, offering far superior cost-effectiveness compared to traditional fixed courts.
Q: Can all models of padel courts be made into portable padel court?
A: Yes. We offer portable versions for all our court models. Whether it is the Super Panoramic, Panoramic, Standard, or any custom design, they can be equipped with a mobile bottom plate. This allows them to retain their professional athletic performance while offering the key advantages of portability and modularity, enabling flexible adaptation to various sites and usage requirements.
